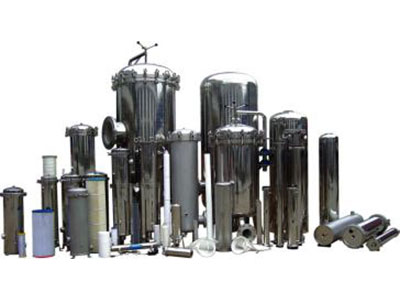

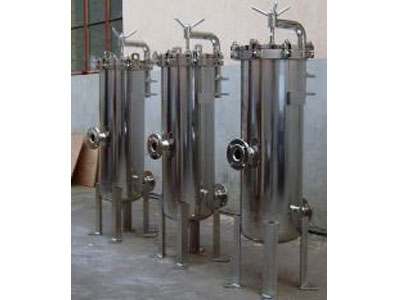

Safety Filters

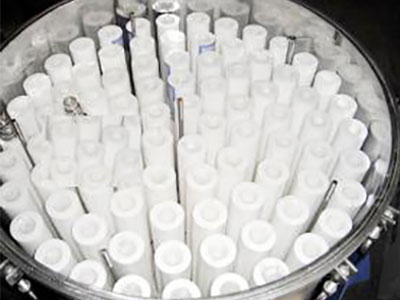

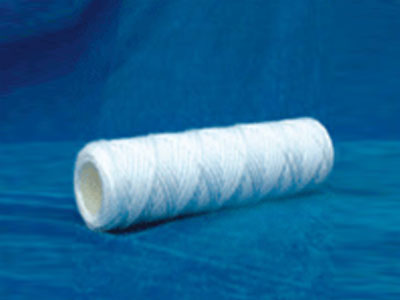

Safety filters are essential fine filters often used in the water treatment process working after the multi-media filter and prior to the membrane filtration devices like reverse osmosis filter and the ultrafilter. Safety filters are often equipped with stainless steel housing and PP, nylon or PPMB filter elements to remove tiny impurities (e.g. quartz sand and activated carbon particles) and contaminants remaining in water after multi-media filtration, so as to protect membrane filters and ensure the filtration precision. A variety of filter elements with different filtration precisions are available: 0.5μs,1μs,5μs or 10μs. Customer can choose a best-fit filter element according to individual application requirements.

The safety filter offers filtration performance due to its high efficiency and easy maintenance and replacement.

Inquiry

Technical Specifications

Operating pressure: max. 1.0MPa
Operating temperature: 5℃~60℃
Housing material: Stainless steel SUS304、SUS316L
Working media: emulsion, mineral oil, cooking oil, water, etc.

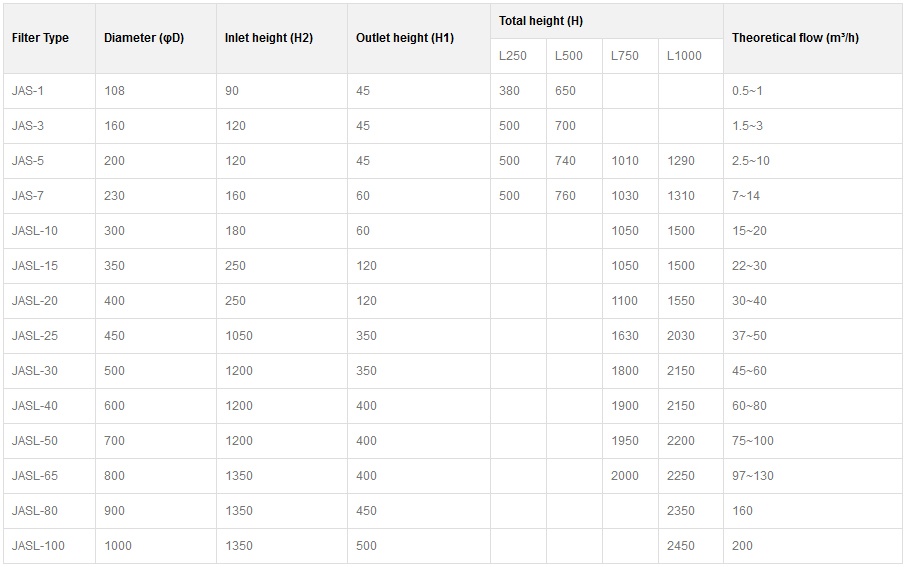

Filter Type	Diameter (φD)	Inlet height (H2)	Outlet height (H1)	Total height (H)				Theoretical flow (m³/h)
Filter Type	Diameter (φD)	Inlet height (H2)	Outlet height (H1)	L250	L500	L750	L1000	Theoretical flow (m³/h)
JAS-1	108	90	45	380	650			0.5~1
JAS-3	160	120	45	500	700			1.5~3
JAS-5	200	120	45	500	740	1010	1290	2.5~10
JAS-7	230	160	60	500	760	1030	1310	7~14
JASL-10	300	180	60			1050	1500	15~20
JASL-15	350	250	120			1050	1500	22~30
JASL-20	400	250	120			1100	1550	30~40
JASL-25	450	1050	350			1630	2030	37~50
JASL-30	500	1200	350			1800	2150	45~60
JASL-40	600	1200	400			1900	2150	60~80
JASL-50	700	1200	400			1950	2200	75~100
JASL-65	800	1350	400			2000	2250	97~130
JASL-80	900	1350	450				2350	160
JASL-100	1000	1350	500				2450	200
