Huilong automatic self-cleaning filter is appropriate for the filtration of contaminated low-viscosity and high-viscosity liquids in a wide range of fields and industries such as construction machinery, heavy duty engines, machining equipment, chemical industry, food industry and so on.

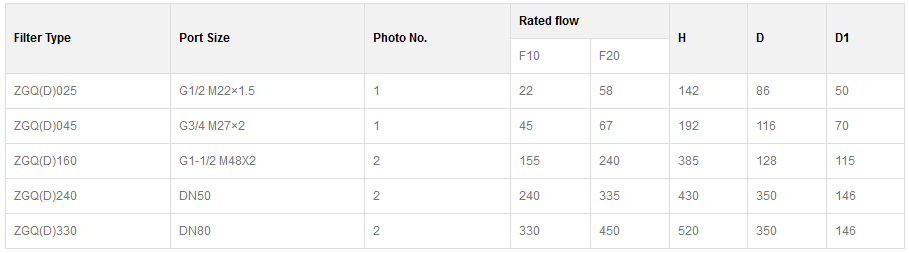

Filter Type | Port Size | Photo No. | Rated flow | H | D | D1 | |
F10 | F20 | ||||||
ZGQ(D)025 | G1/2 M22×1.5 | 1 | 22 | 58 | 142 | 86 | 50 |
ZGQ(D)045 | G3/4 M27×2 | 1 | 45 | 67 | 192 | 116 | 70 |
ZGQ(D)160 | G1-1/2 M48X2 | 2 | 155 | 240 | 385 | 128 | 115 |
ZGQ(D)240 | DN50 | 2 | 240 | 335 | 430 | 350 | 146 |
ZGQ(D)330 | DN80 | 2 | 330 | 450 | 520 | 350 | 146 |
