Medium Pressure Filters | Aluminum Hydraulic System Filter

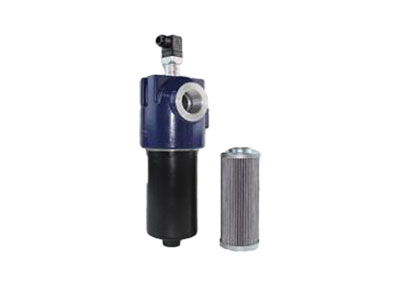

Medium Pressure Hydraulic Filters, YPM Series

Flow rate: Max. 660L/min

Operating pressure: Max. 21MPa

Applications

The medium pressure hydraulic filters can be installed in medium-pressure hydraulic line systems and remove contaminants from hydraulic fluids and lubricating oils.

Technical Specifications

Maximum operating pressure: 21 MPa
Operating temperature range: −25°C to +120°C
Clogging indicator set pressure: 0.5 MPa
Bypass valve cracking pressure: 0.6 MPa
Housing material: Aluminum
Compatible fluids: Mineral oils, emulsions, water-glycol fluids and phosphate ester hydraulic fluids (resin-impregnated paper is suitable for mineral oils only)

Inquiry

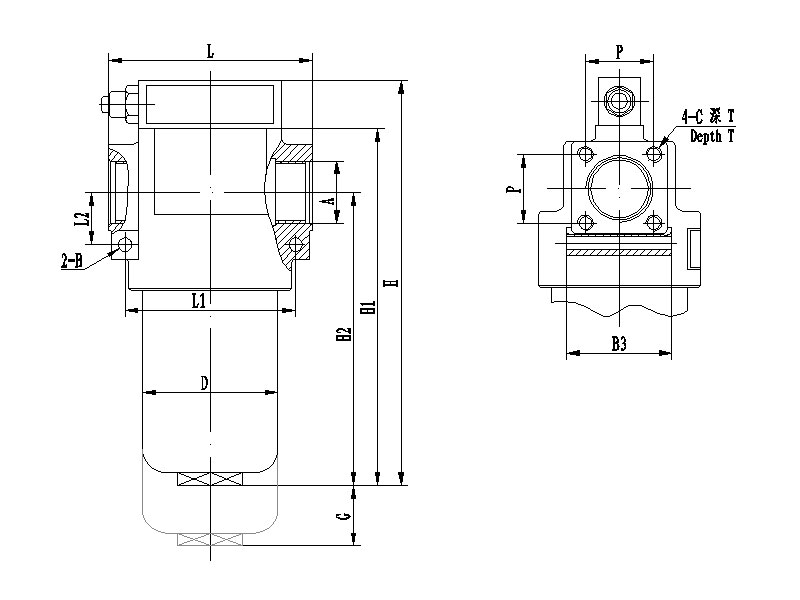

Dimensions

Medium Pressure Hydraulic Filters, YPM Series

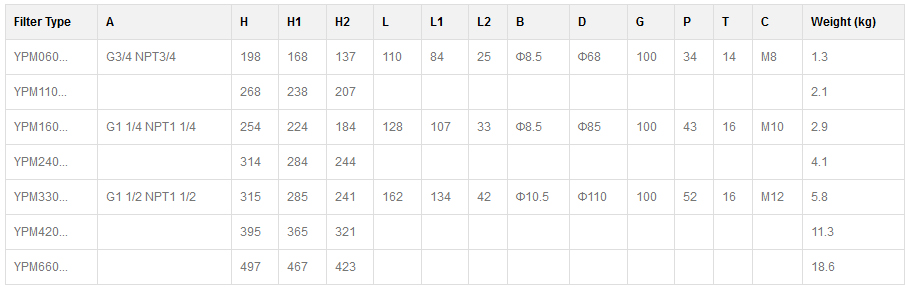

Model	A	H	H1	H2	L	L1	L2	B	D	G	P	T	C	Weight (kg)
YPM060...	G3/4 NPT3/4	198	168	137	110	84	25	Φ8.5	Φ68	100	34	14	M8	1.3
YPM110...		268	238	207										2.1
YPM160...	G1 1/4 NPT1 1/4	254	224	184	128	107	33	Φ8.5	Φ85	100	43	16	M10	2.9
YPM240...		314	284	244										4.1
YPM330...	G1 1/2 NPT1 1/2	315	285	241	162	134	42	Φ10.5	Φ110	100	52	16	M12	5.8
YPM420...		395	365	321										11.3
YPM660...		497	467	423										18.6
